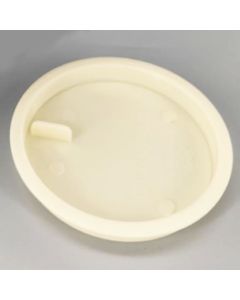

The ABS Test Cap Socket (NSF ASTM D2661) for DWV (Drain, Waste, and Vent) pipe systems is a fitting used to seal off the end of a pipe temporarily for pressure testing. Here’s a breakdown of its purpose and how it's used:

Purpose of ABS Test Cap Socket:

  1. Leak Testing: It is primarily used to test the integrity of a DWV system. When a plumbing system is installed, it needs to be tested for leaks before it becomes operational. The test cap allows you to temporarily seal the pipe, so the system can be filled with air or water to check for leaks.
  2. Temporary Seal: The cap acts as a temporary seal during the construction or repair of plumbing systems. It helps prevent debris, dirt, or other materials from entering the pipe during the installation process.
  3. Easy Removal: ABS test caps are designed to be removed easily once the testing process is complete. This allows plumbers to continue with the installation or connection of other fittings without damaging the pipes.

Key Features:

  • Socket Connection: The simple socket end is designed to fit directly into the pipe, creating a easy and tight seal when needed for testing.
  • Durable Material: Made from ABS (Acrylonitrile Butadiene Styrene), it is resistant to corrosion and suitable for non-pressurized DWV systems.

Common Use Case:

During the rough-in phase of a plumbing project, plumbers will install these test caps on open ends of the pipe. The system is then pressurized with air or filled with water, and the pressure is monitored to ensure that there are no leaks in the joints or fittings. Once the testing is complete and no leaks are detected, the test cap is removed, and the rest of the plumbing installation proceeds.

This fitting is essential for ensuring the reliability and safety of DWV systems before they are fully operational.
